使用Github Action实现Maven多模块编译Spring Boot native Image

pom 结构

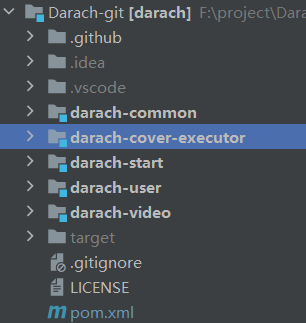

项目结构如下

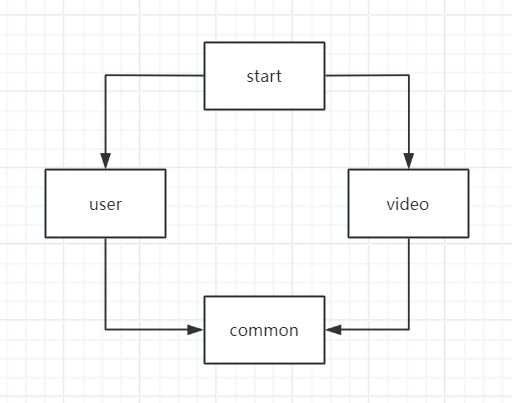

依赖关系

要实现编译native image 所用到的pom build plugin如下

主pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <skip>true</skip>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.graalvm.buildtools</groupId>
            <artifactId>native-maven-plugin</artifactId>
            <configuration>
                <skip>true</skip>
            </configuration>
        </plugin>
    </plugins>
</build>

入口pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<build>
    <plugins>
        <plugin>
            <groupId>org.graalvm.buildtools</groupId>
            <artifactId>native-maven-plugin</artifactId>
            <configuration>
                <skip>false</skip>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <skip>false</skip>
            </configuration>
        </plugin>
    </plugins>
</build>

依赖pom

1
2
3
4
5
6
7
8
9
10
11
<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <skip>true</skip>
            </configuration>
        </plugin>
    </plugins>
</build>

github action 编译

主要用到的是graalvm/setup-graalvm@v1

Workflow file

Workflow file如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
name: GraalVM Native Image builds
on: [push, pull_request]
jobs:
  build:
    name: build on ${{ matrix.os }}
    runs-on: ${{ matrix.os }}
    strategy:
      matrix:
        os: [macos-latest, windows-latest, ubuntu-latest]
    steps:
      - uses: actions/checkout@v3

      - uses: graalvm/setup-graalvm@v1
        with:
          java-version: '17.0.7'
          distribution: 'graalvm'
          github-token: ${{ secrets.GITHUB_TOKEN }}
          native-image-job-reports: 'true'
      - name: Build
      	# -DskipTests 可选
        run: mvn -U clean install -DskipTests && mvn native:compile -Pnative -DskipTests
      - name: Upload binary
        uses: actions/upload-artifact@v2
        with:
          name: artifact-${{ matrix.os }}
          path: xxx 这里填构建产物的位置

当action运行完后可以在artifact中获取到构建产物

image-20230724171921300

image-20230724171933965
